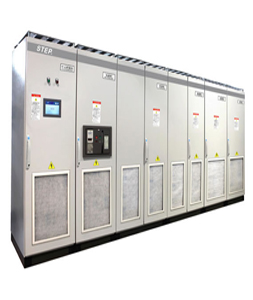

AS700 harbor crane 4-quadrant inverter comes with compact structure, and is equipped with an energy regenerative power supply unit which allows the energy generated during braking process to be fed back into the power grid. So, it is very energy saving and requires little installation space. Requiring no external braking resistor, the harbor crane 4-quadrant inverter is easy for installation.
The energy regenerative power supply unit allows the harbor crane 4-quadrant inverter to work in either motor drive mode or power generation mode, and the switch between the two working modes is very fast because of the vector control technology. The vector controlled energy regenerative power supply unit can even compensate the instantaneous voltage fluctuation for power grid. Hence, the harbor crane inverter can protect equipment from damage and protect the fuse wire from broken, when there is voltage fluctuation in power supply system.
The 4-quadrant inverter is designed for different types of harbor cranes, including gantry cranes, container crane, and various other types of cargo cranes. It can also be used in process control fields, for instance, in paper making, metallurgy, mining, cement production, chemical, natural gas, petroleum, and more industries. The harbor crane 4-quadrant inverter is customizable. It is characterized by wide power and voltage range, and is programmable, so it is able to meet diversified application demands.
Power supply | Voltage and power range | 3-phase U3N: 380-415VAC [-10%...+10%] 3-phase U5N: 380-500VAC [-10%...+10%] 3-phase U7N: 520-690VAC [-10%...+10%] |
Input frequency | 45...66Hz | |
Connection frequency | 1 time per minute or less | |
Power factor | Cosφ1=1( fundamental wave) Cosφ=0.99(all) | |
Efficiency (rated power) | AS700-01 98% AS700-x02 98% 97% (IGBT power supply unit) | |
Operation environment | Operation environment | -10℃ [no condensing] ...+40℃ |
Storage temperature | -40℃ ...+70℃ | |
Transportation temperature | -40℃ ...+70℃ | |
Relative humidity | 5~95%RH, no condensing, no corrosive substances and water drops | |
Cooling method | Dry clean air | |
Storage environment | IEC60721-3-1, Class 1C2 (chemical gas), Class 1S2 (solid particle) | |
Transportation environment | IEC60721-3-2 ,Class 2C2(chemical gas), Class 2S2(solid particle) | |
Operation environment | IEC60721-3-3, Class 3C1/3C2*(chemical gas), Class 3S2 (solid particle) C= chemical active substances, S= mechanical active substances, * coated circuit board | |
Altitude | Max.1000m (include), 100% load [no derating] 1000~4000m or above, every 100m increase in altitude requires 1% derating | |
Shock resistance EN50178/EN60068-2-6 | 3-30HZ: amplitude 1mm (peak) 30-150HZ: the maximum acceleration is 1G | |
Protection class | IP21 | |
Standard | CE, Low voltage directive 73/23/EEC, including amending clause 93/68/EEC; Mechanical directive 98/37/EC; EMC clause 89/336/EEC, including amending clause 93/68/EEC; ISO 9001 and ISO 14001 | |
Control system connections | Analog input voltage | 2 groups, 0~ +10V (or-10V~+10V, handle control), Ri=200kΩ, resolution: 0.1%, precision: ±1% |
Analog input current | 0(4)…20mA, Ri=250Ω differential | |
Digital input | 8-bit, positive or negative logic: 18~30VDC | |
Auxiliary voltage | DC24V,±15%, maximally 250mA | |
Output reference voltage | ±10V,±3%, maximally 10mA | |
Analog output | 2 groups, 0 (4) ~20mA, Ri = 500Ω maximally, resolution: 10 bits, precision:±2% | |
Relay output | 3 programmable transfer relay output; switching capacity: 24VDC/8A,250VAC/8A,125VDC/0.4A; Minimum switching load: 5V/10mA | |
Control characteristics | Control method | Speed control + torque control, freely switch between two control modes is allowable |
Starting torque | 180% 0Hz (PC card vector control) | |
Speed control range | 1:1000 (PC card vector control) | |
Torque control | Response time: <10ms, at closed-loop nominal torque condition | |
Torque precision:±5%, at closed-loop nominal torque condition | ||
Speed control | Static status speed precision: 0.01% of rated speed (closed loop) | |
Dynamic status speed precision: 2-4ms (closed loop) | ||
Overload capacity | 1.8×rated output current (180% overload), duration: 60s; 2×rated output current (200% overload), duration: 10s | |
Carrier frequency | 4 ~11kHz | |
Load ratio measurement | A weight-measuring sensor is available to adjust the necessary torque on load phase while the brake is released | |
High speed lifting | On the condition that the output current is no more than the rated motor current while the motor is in the maximum speed, the crane inverter comes with constant power. Thus, the inverter speed is higher than motor's rated speed. |
Rated level | No-overload | Slightly-overload | Heavy-overload | Model | Overall dimension | |||
Icon max A | Imax A | Pcon max kW | IN A | PN kW | Ihd A | Phd kW | ||
UN=400V (380~415V, power value is effective at rated voltage 400V) | ||||||||
120 | 168 | 55 | 114 | 55 | 88 | 45 | AS700-04-0055-3 | S2 |
150 | 234 | 75 | 142 | 75 | 117 | 55 | AS700-04-0075-3 | S2 |
165 | 264 | 90 | 157 | 90 | 132 | 75 | AS700-04-0090-3 | S2 |
202 | 293 | 110 | 194 | 110 | 151 | 75 | AS700-04-0110-3 | S2 |
250 | 363 | 132 | 240 | 132 | 187 | 90 | AS700-04-0132-3 | S2 |
292 | 400 | 160 | 280 | 160 | 218 | 110 | AS700-04-0160-3 | S3i |
370 | 506 | 200 | 355 | 200 | 277 | 132 | AS700-04-0200-3 | S3i |
469 | 642 | 250 | 450 | 250 | 351 | 200 | AS700-04-0250-3 | S3i |
565 | 773 | 315 | 542 | 315 | 423 | 250 | AS700-04-0315-3 | S3i |
704 | 963 | 385 | 675 | 355 | 526 | 315 | AS700-04-0385-3 | S4i |
919 | 1258 | 500 | 882 | 500 | 688 | 355 | AS700-04-0500-3 | S4i |
1111 | 1521 | 630 | 1067 | 630 | 831 | 450 | AS700-04-0630-3 | 2×S3i |
1379 | 1888 | 800 | 1324 | 710 | 1031 | 560 | AS700-04-0800-3 | 2×S4i |
1535 | 2102 | 900 | 1474 | 800 | 1149 | 630 | AS700-04-0900-3 | 2×S4i |
1978 | 2707 | 1200 | 1899 | 1100 | 1479 | 800 | AS700-04-1200-3 | 3×S4i |
2610 | 3573 | 1600 | 2506 | 1400 | 1953 | 1100 | AS700-04-1600-3 | 3×S4i |
UN=500V(380~500V, power value is effective at rated voltage 500V) | ||||||||
120 | 168 | 75 | 114 | 75 | 88 | 55 | AS700-04-0075-5 | S2 |
139 | 234 | 90 | 132 | 90 | 114 | 75 | AS700-04-0090-5 | S2 |
156 | 264 | 110 | 148 | 90 | 125 | 75 | AS700-04-0110-5 | S2 |
200 | 291 | 132 | 192 | 132 | 150 | 90 | AS700-04-0132-5 | S2 |
245 | 356 | 160 | 235 | 160 | 183 | 110 | AS700-04-0160-5 | S3i |
302 | 438 | 200 | 289 | 200 | 226 | 132 | AS700-04-0200-5 | S3i |
365 | 530 | 250 | 350 | 250 | 273 | 160 | AS700-04-0250-5 | S3i |
455 | 660 | 315 | 437 | 315 | 340 | 200 | AS700-04-0315-5 | S3i |
525 | 762 | 355 | 504 | 355 | 393 | 250 | AS700-04-0355-5 | S4i |
595 | 863 | 400 | 571 | 400 | 445 | 315 | AS700-04-0400-5 | S4i |
670 | 972 | 500 | 643 | 450 | 501 | 315 | AS700-04-0500-5 | S4i |
892 | 1294 | 630 | 856 | 630 | 667 | 450 | AS700-04-0630-5 | 2×S3i |
1005 | 1458 | 710 | 965 | 630 | 752 | 500 | AS700-04-0710-5 | 2×S4i |
1313 | 1906 | 900 | 1261 | 900 | 982 | 710 | AS700-04-0900-5 | 2×S4i |
1528 | 2217 | 1120 | 1467 | 1120 | 1143 | 800 | AS700-04-1120-5 | 3×S4i |
1884 | 2734 | 1400 | 1809 | 1300 | 1409 | 1000 | AS700-04-1400-5 | 3×S4i |
2486 | 3608 | 1800 | 2387 | 1700 | 1860 | 1300 | AS700-04-1800-5 | 4×S4i |
UN=700V (525~690V, power value is effective at rated voltage 690V) | ||||||||
132 | 192 | 110 | 127 | 110 | 99 | 90 | AS700-04-0110-7 | S2 |
150 | 218 | 132 | 144 | 132 | 112 | 90 | AS700-04-0132-7 | S2 |
201 | 301 | 200 | 193 | 160 | 150 | 132 | AS700-04-0200-7 | S2 |
279 | 417 | 250 | 268 | 250 | 209 | 200 | AS700-04-0250-7 | S2 |
335 | 502 | 315 | 322 | 250 | 251 | 200 | AS700-04-0315-7 | S3i |
382 | 571 | 355 | 367 | 355 | 286 | 250 | AS700-04-0355-7 | S3i |
447 | 668 | 450 | 429 | 400 | 334 | 315 | AS700-04-0450-7 | S3i |
659 | 985 | 630 | 632 | 630 | 493 | 450 | AS700-04-0630-7 | S3i |
729 | 1091 | 710 | 700 | 710 | 545 | 500 | AS700-04-0710-7 | S4i |
876 | 1310 | 900 | 840 | 800 | 655 | 630 | AS700-04-0900-7 | S4i |
1112 | 1663 | 1120 | 1067 | 1120 | 831 | 800 | AS700-04-1120-7 | S4i |
1256 | 1879 | 1250 | 1206 | 1200 | 940 | 900 | AS700-04-1250-7 | 2×S3i |
1657 | 2480 | 1700 | 1591 | 1600 | 1240 | 1200 | AS700-04-1700-7 | 2×S4i |
2321 | 3472 | 2300 | 2228 | 2300 | 1736 | 1600 | AS700-04-2300-7 | 2×S4i |
2460 | 3680 | 2500 | 2362 | 2400 | 1840 | 1800 | AS700-04-2500-7 | 3×S4i |
As a professional harbor crane 4-quadrant inverter manufacturer based in China, STEP offers a vast array of products that includes high voltage inverter, elevator group control system, elevator control cabinet, car controller board, and much more.
