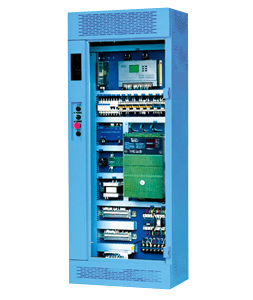

Full Serial DCVV Control Cabinet

The control function of the full series DCVV control cabinet is achieved by its STEP full serial elevator control system. The elevator control cabinet supports many control modes such as duplex, group control, remote control, etc. By adopting CAN-Bus serial communication, the wiring cost is reduced due to less cable used, while the elevator is safer and more reliable. The electric drive uses a MENTOR II DCVV speed regulator produced by British CT, and there is no need for electric generator set. By changing the voltage on the brush of the motor, the motor speed can be modulated. Hence, an elevator controlled by the DCVV control cabinet offers a comfortable feeling, improved operation efficiency and reduced energy consumption. The full serial DCVV control cabinet uses an absorption circuit and a DC reactor to greatly reduce the operation noise. Our control cabinet is suitable for different kinds of DC elevators

Parameters of the Full Serial DCVV Control Cabinet

Rated elevator speed Less than 6.3m/s
Power range 15-75kW
Power supply AC 360-460V, 50/60Hz, 3 phase
Frequency inverter CT DC frequency inverter
Applicable motor DC motor
Landing method Direct landing
Landing accuracy Less than ±3mm
Machine room heat dissipation No need
Energy saving performance Greater than 60% compared with electric generator set
Safety standard GB7588, EN-81
Dimension 800mm*1740mm*382mm
